Aflex Bellows Assemblies

Aflex – Australia’s only paperless ISO9001:2015 accredited bellows manufacturer

Industry leading quality assurance, manufacturing software and systems unsurpassed in metal bellows maunfacture

Aflex (Formerly Axial Dynamics) manufactures a wide range of bellows assemblies or expansion joints, at our manufacturing facility in Sydney, NSW. All our bellows are manufactured in Australia, and we are proud to be Australia’s premier metal bellows manufacturer. We’ve listed some of our main assembly types below, however you may also want to check out our gallery page, updated daily, with our manufactured items.

Email: sales@aflex.com.au

Click on an image below for more details about that bellows type

SEB - Single Expansion Bellows

A basic, unrestrained expansion bellows. This assembly type allows some flexibility in all directions.

  • Applications: Air ducts, exhaust pipes, any application where thrust is restrained by the pipeline
  • Materials: Austenitic Stainless Steels, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1350nb

UEB - Universal Expansion Bellows

An unrestrained ‘double bellows’ assembly, that allows lots of flexibility all directions.

  • Applications: Air ducts, exhaust pipes, any application where thrust is restrained by the pipeline
  • Materials: Austenitic Stainless Steels, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1350nb

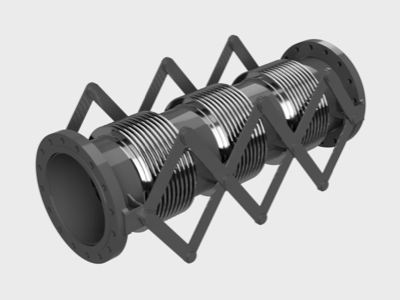

PANTO – Pantograph Bellows Assembly

An unrestrained, multi bellows assembly designed to allow for great amounts of axial movement while evenly distributing the movement between all bellows elements.

  • Applications: All typed of piping applications. Common on bridges and drainage lines.
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 50 – 1200nb

TEB - Tied Expansion Bellows

A basic restrained expansion bellows allowing some lateral flexibility along with axial flexibility in compression only.



  • Applications: Pump connections, water pipes, steam pipes
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1200nb

TUEB - Tied Universal Expansion Bellows

A restrained, universal bellows assembly, allowing lots of lateral flexibility.

  • Applications: Steam, process and water pipes
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1200nb

HEB - Hinged Expansion Bellows

A fully restrained single expansion bellows assembly, allowing only angular flexibility on a single plane. Used as part of an engineered pipeline movement solution.

  • Applications: All types of high pressure piping
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1200nb

DHEB - Double Hinged Expansion Bellows

A fully restrained double bellows assembly, allowing only lateral flexibility in a single plane. Used as part of an engineered pipeline movement solution.

  • Applications: All types of high pressure piping
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1200nb

GEB - Gimbal Expansion Bellows

A fully restrained single expansion bellows assembly, allowing only angular flexibility on two planes simultaneously. Used as part of an engineered pipeline movement solution.

  • Applications: All types of high pressure piping
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1000nb

DGEB - Double Gimbal Expansion Bellows

A fully restrained double bellows assembly, allowing only lateral flexibility in a two planes simultaneously. Used as part of an engineered pipeline movement solution.

  • Applications: All types of high pressure piping
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-1000nb

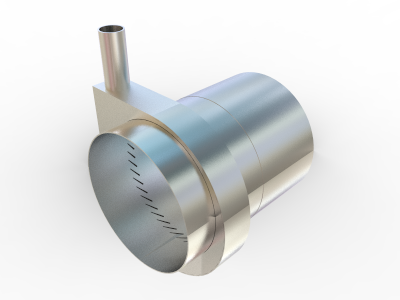

XB - Externally Pressurised Bellows Assembly

A semi restrained bellows assembly, allowing large axial flexibility (no lateral or angular flexibility).

  • Applications: All types of piping where thrust forces are restrained
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-700nb

DXB - Double Externally Pressurised Bellows Assembly

A semi restrained bellows assembly, allowing extremely large axial flexibility (no lateral or angular flexibility).

  • Applications: All types of piping where thrust forces are restrained
  • Materials: Austenitic Stainless Steel – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 40-700nb

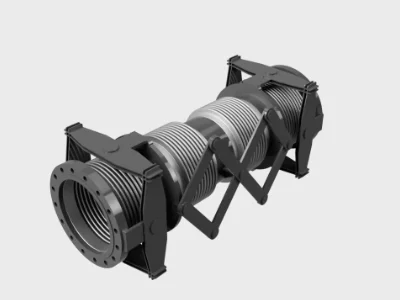

GEB PANTO – Gimbal Pantograph Bellows

A multi element bellows assembly fitted with gimbal ends. This allows for high amounts of both axial and lateral flexibility, whilst also evenly distributing the movement over all bellows elements

  • Applications: All typed of piping applications. Common on bridges and in buildings to accommodate seismic movement
  • Materials: Austenitic Stainless Steels – 316SS and 321SS, 600 and 800 Series Nickel Alloys, Hastalloy C-276, Nickel 200 and 201
  • Nominal Pipe Size Range: 50 – 1200nb
